How to create Custom Address Styles in Oracle Apps

Client – Clients who are having Global Rollouts and need for multiple address styles.

Business Case – Need to add country specific address style formats for addresses information which are stored in the different core modules of Oracle Apps including Receivables (for Customer and Remit to Addresses), Payables (Supplier and Payment Addresses), Banks (Bank Branch addresses)

Out of the box address styles - Oracle Applications provides one default and five predefined address styles. These address styles cover the basic entry requirements of many countries. The different address styles provided out of the box are:
• Default,
• Japanese,
• Northern European and Southern European,
• South American,
• United Kingdom/Asia/Australasia,
• United States

How to add a new Address Style -

Let us say the client has a Business requirement to add a new address style for ‘Canada’. The following high level steps can be followed to define this new ‘Canada’ address style.

1. Choose address style database columns for your ‘Canada’ address style.

First you need to decide (as per client’s requirements) which columns from the database you are going to use and how you are going to order them. All the seeded address styles include the following database columns and some additional columns.

• Bank Addresses
• AP_BANK_BRANCHES.ADDRESS_LINE1
• AP_BANK_BRANCHES.CITY
• AP_BANK_BRANCHES.STATE
• AP_BANK_BRANCHES.ZIP

Customer and Remit-To Addresses
• HZ_LOCATIONS.ADDRESS1
• HZ_LOCATIONS.CITY
• HZ_LOCATIONS.POSTAL_CODE
• HZ_LOCATIONS.STATE

• Supplier Addresses
• PO_VENDOR_SITES.ADDRESS_LINE1
• PO_VENDOR_SITES.CITY
• PO_VENDOR_SITES.STATE
• PO_VENDOR_SITES.ZIP

• Payment Addresses
• AP_CHECKS.ADDRESS_LINE1
• AP_CHECKS.CITY
• AP_CHECKS.STATE
• AP_CHECKS.ZIP

For example, in the Japanese address style, the address element called Province maps onto the STATE database column and that in the United Kingdom/Africa/Australasia address style the address element called County also maps onto the STATE database column. Oracle recommends that all custom address styles also include at least the above database columns because these address columns are used extensively throughout Oracle for printing and displaying.
Note: Most reports do not display the PROVINCE, COUNTY, or ADDRESS4/ADDRESS_LINE4 database columns for addresses.

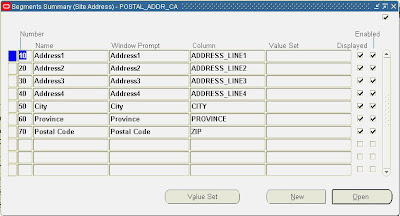

The following screenshot gives you an idea of how to setup database columns for your ‘Canada’ address style:



2. Define ’Canada’ address style to database columns using Define Descriptive Flexfield Segments Window.

Next step is to create a new context value for each of the descriptive flexfields.

Payables – Bank Address:



Payables – Site Address:



Receivables – Address:



Receivables - Remit Address Information:



3. Add address style to the address style lookup:

Add the ‘Canada’ address style name to the Address Style Special lookup so that you will be able to assign the style to countries and territories.

To add a new style to the address style lookup:
A. Using the Application Developer responsibility, navigate to Applications > Lookups > Application Object Library.
B. Query the ADDRESS_STYLE lookup.
Receivables displays all of the address styles used by Flexible Addresses.
C. Add your new ‘Canada’ address style, as follows:



D. Enable this style by checking the Enabled check box.

4. Assign the address style to the appropriate country using the Countries and Territories window.

· Using Receivable or Payables Superuser responsibility navigate to Setup > System > Countries. · Query for Country = ‘Canada’
· Attach the ‘Canada’ Address Style created to the Canada Country
· Save the record



5. This completes the setup for the new ‘Canada’ address style, now you can use this new address style while adding new Canada Customers, Suppliers etc. See screenshot below on how the Customer Form displays the new ‘Canada’ address style:



Click on the Address filed and you will get a popup window with the new ‘Canada’ address style:
